The conventional gear reduction ratios for motors are 16:1, 25:1, 32:1, 48.8:1, 64:1, and 85:1, which can be selected according to your usage needs. The output shaft of the motor can also be customized according to your needs. For the internal gears of the motor, plastic gears, metal gears, and semi metal gears can be made. The price of plastic gears will be lower, and the specific internal gears will also be determined based on the customer's application

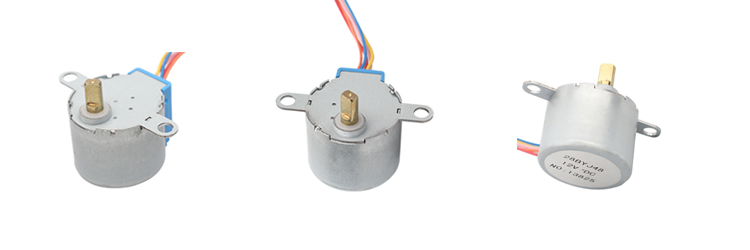

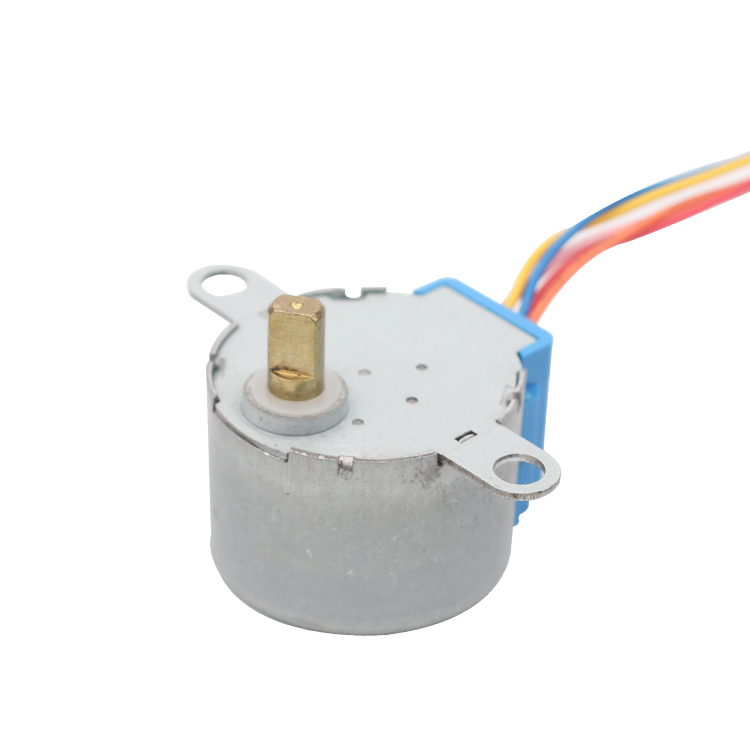

4 wire stepper motor PM reduction ratio 1/64 stepper motor 28byj48
28BYJ48 is a Motor diameter: 28mm;
Voltage: 5V, 12V (All could be customized);
Step Angle: 5.625 degree, 11.25 degree;
Reduction Ratio: 1/16, 1/64, could be customized.
No. of Phase: 2 Phase (Bipolar 4 Wires), 4 Phase (Uni-polar 5 or 6 Wires)
Motor can be customized;
Excellent open loop control - No encoders necessary
Digitally controlled - Easy to use with a micro processor
Cost effective - compact design, lower integration cost
Maintenance free - motor is brushless
Winding possibilities – Bipolar

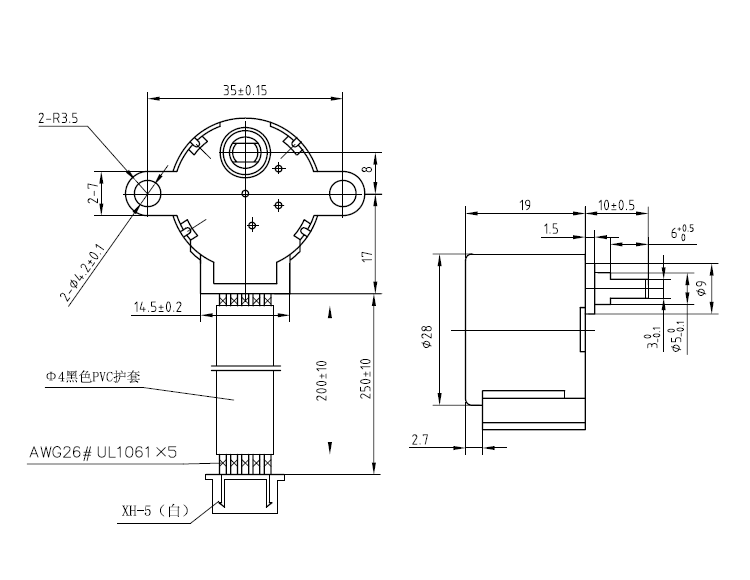

Mechanical Dimension:MM
Typical Applications
-
Application Highlights
HVAC/R Valve Actuation Winding possibilities – Bipolar
Office Automation Printers, Copiers, Data storage Maintenance free - motor is brushless
Medical Applications Pill dispensing Analysers Cost effective - compact design, lower integration cost
Other Industries & Applications Robotics Digitally controlled - Easy to use with a micro processor
Telecommunication Antennae positioning Switching lines Open loop control - No encoders necessary
Specifications
| PRODUCT NAME | 28BYJ48 PM Stepping Motor Gearbox |
| MODEL | 28BYJ48-26 |
| DC RESISTANCE | 50Ω±7%(25℃) |
| NO-IOAD PULL-IN FREQUENCY | ≥600HZ |
| NO-IOAD PULL-OUT FREQUENCY | ≥1000HZ |
| PULL IN TORQUE | ≥34.3mN.m(120HZ) |
| DETENT TORQUE | ≥34.3mN.m |
| INSULATION RESISTANCE | ＞10MΩ(500V)) |
| INSULATION DIELECTRIC STRENGTH | 600VAC/1mA/1s |
| INSULATION CLASS | A |
| TEMPERATURE RISE | ＜40K(120HZ) |
| NOISE | ＜40dB(120HZ,No load,10cm) |
| WEIGHT | About 40g |
| OEM & ODM SERVICE | AVAILABLE |
Competitive Advantage
Product Detail Presentation
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes can be customized.
Type of Wire Connect
Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
