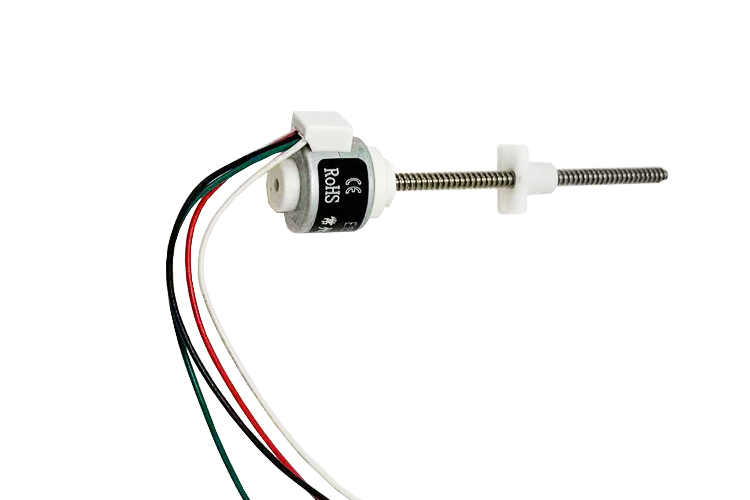

15mm linear stepper motor 6V 12V 2 phases 18° stepper motor
15mm diameter linear motor with plastic slider, screw stroke can be customized according to customer installation requirements, or customized according to customer requirements. External drive motor type can be used and selected according to customer needs
Meanwhile, the external wiring part usually consists of connecting wires and outlet boxes, and bare pins can also be customized according to customer needs
Our team has over 10 years of experience in the design, development, and production of stepper motors, so we can achieve product development and auxiliary design according to customers' special needs!
Customer needs are our efforts, please feel free to contact us at any time!
Mechanical Dimension:MM
otor parameters and specificatio
| POWERYOLTAGE | W | 1.6 |
| VOLTAGE | V | 5 |
| PHASE CURRENT | Ma | 160 |
| PHASE RESISTANCE | 0hm/20C | 33(±10%) |
| PHASE INDUCTANCE | mH / 1kHz | 8.7(±20%) |
| STEP ANGLE | . | 18 |
| SCREWLEAD | mm | 0.5 |
| STEP TRAVEL | mm | 0.025 |
| LINEAR FORCE | N/300PPS | ＞5 |
| SCREW LENGTH | mm | 31 |
| INSULATION CLASS | | B |
| INSULATION RESISTANCE | M(DC 500V) | 20 |
| OPERATING TEMP RANGE | ℃ | -20~+55℃ |
| STORANG TEMP RANGE | ℃ | -40~+100℃ |
| MASS | g | 35 |
Technical Features
This product is a patented product of the company. It converts the rotation of the motor into a linear motion through the relative
movement of the internal rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile
machines, robots and other related fields.
At the same time, the external wiring part can use four terminal posts (light pins) or connecting wires, or FPC FFC PCB, etc.
according to customer requirements.
The output part is linear.
Typical Applications
15mm Linear Stepper Motor With 5Vdc Lead Screw Bipolar Customized
Customization service
The motor can customize the normal screw stroke,
Connectors and outlet boxes can be customized according to customer requirements
The screw rod can also customize the nut
Competitive Advantage
-
High quality and the best price.
-
Fast deliver,storage company and rich inventory
-
Near Shanghai port, the traffic is very convenient.
Product Detail Presentation
Packing and Shipping:
Packaging and Shipping
- The Micro Stepper Motor is packed in a sturdy box.
- Protective packaging material is used to protect the product from damage during shipping.
- The package is securely sealed.
- The package is shipped through a reliable carrier.
-
|
|
